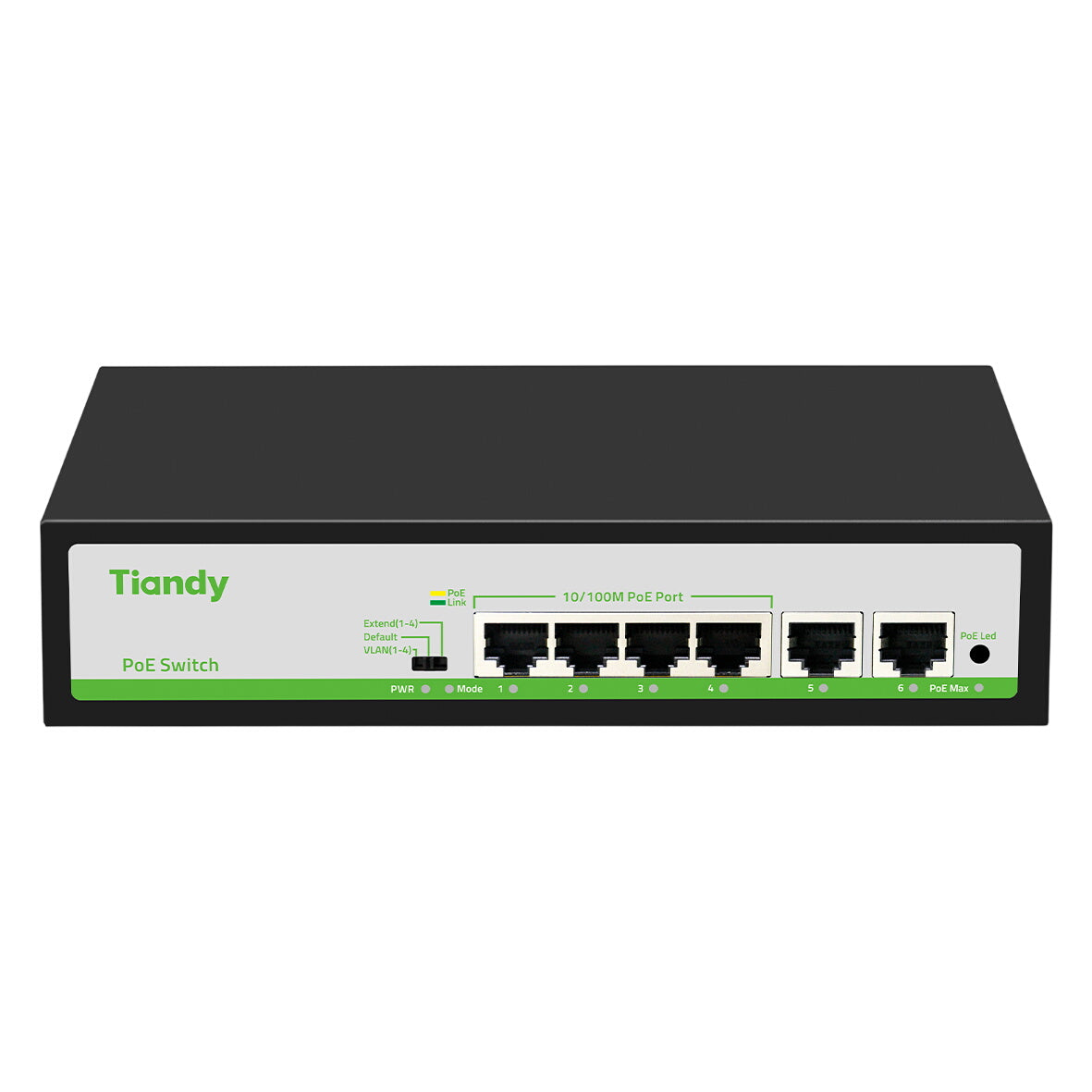

TIANDY TC-P3S06 PoE Switch, 4x PoE + 2x Uplink (F/0420/AT/55)
Special pricing and installation support for 5+ units. Get a project quote
TIANDY TC-P3S06-F/0420/AT/55
The TIANDY TC-P3S06-F/0420/AT/55 is a compact PoE switch offering 4 10/100 Mbps PoE ports and 2 10/100 Mbps uplink ports; it is compatible with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards and supports VLAN, Default, and Extend modes with a three-level DIP switch.
4× 10/100 Mbps PoE + 2× Uplink
Provides 4 10/100 Mbps PoE ports and 2 10/100 Mbps RJ45 uplink ports.
PoE & Power
Supports IEEE 802.3af and IEEE 802.3at, with a POE output voltage of DC 52 V and a total PoE power of maximum 55 W.
Bandwidth & Performance
1.2 Gbps bandwidth and 0.8928 Mpps forwarding rate; supports 448 K packet buffer and 1 K MAC addresses.
Operating Modes & Protection
Three-level DIP switch supporting VLAN/Default/Extend modes, PoE Priority (QOS) 1>2>3>4; port lightning and ESD protection: common mode 4 KV, air 8 KV, contact 6 KV.
Technical Specifications
Ethernet : 4× 10/100 Mbps PoE port, 2× 10/100 Mbps RJ45 Uplink port
Power Input : AC 100-240 V
Bandwidth : 1.2 Gbps
Forwarding Rate : 0.8928 Mpps
Packet Buffer : 448 K
MAC Address : 1 K
Forwarding Mode : Store-and-forward
PoE Protocol : IEEE802.3af (15.4 W) · IEEE802.3at (30 W)
POE Output Voltage : DC 52 V
Total PoE Power : Max. 55 W
Power Supply : 52 V / 1.25 A
Mainboard Power : Max. 10 W
IEEE Standards : IEEE802.3, IEEE802.3u, IEEE802.3x
Flow Control : Full-duplex IEEE802.3x, Half-duplex back pressure
Port Features : Auto MDI/MDIX; PoE Priority (QOS): 1>2>3>4
EMS : EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Dimensions : 200 × 118 × 44 mm
Product Weight : 0.54 KG
Package Weight : 0.88 KG
Operating Temperature : -10 ~ 50 °C
Storage Temperature : -40 ~ 70 °C
Operating Humidity : 10% ~ 90%, non-condensing
