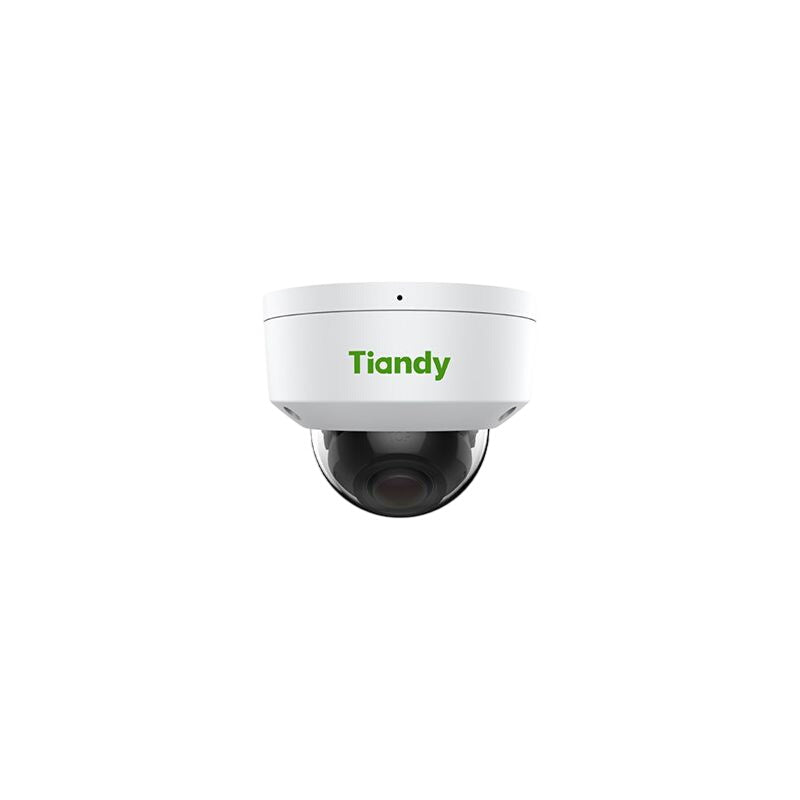

Tiandy TC-C34KS Spec:2CTB-2812 4 MP IP Minidome Camera (2.8–12 mm Motorized Varifocal, 30 m IR)
Special quotes and installation support for project and bulk purchases. Get a project quote
Tiandy TC-C34KS Spec:2CTB-2812
The Tiandy TC-C34KS Spec:2CTB-2812 is an SK Series Color Maker IP dome camera with 4 MP (2560×1440 @30fps) resolution and a 2.8–12 mm motorized lens; it offers 30 m IR illumination, TWDR, smart alarm with human and vehicle detection, a built-in microphone, microSD support up to 512 GB, and power options including both DC12V and PoE.
High Resolution
Provides detailed images with 4 MP 2560×1440 @30fps resolution from a 1/3″ CMOS sensor.
Motorized Lens
2.8–12 mm motorized lens, F1.6 aperture, and 102.9°~31.4° (horizontal) angle of view range.
Night Vision
30 m IR distance, 850 nm wavelength, and 4 IR LEDs; automatic day/night switching with Smart IR and ICR; 0.002 Lux in color mode.
Durability and Power
IP67 and IK08 protection, 4000V surge and 6000V ESD protection, with an operating temperature of -30°C ~ 60°C; supports DC12V ±25% (max. 6 W) and PoE (IEEE 802.3af, max. 6.5 W).
Technical Specifications
Camera Type : 4MP motorized Color Maker dome camera (SK Series)
Image Sensor : 1/3″ CMOS
Resolution : 4 MP, 2560×1440 @30fps
Min. Illumination : Color: 0.002 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
Shutter Speed : 1 s ~ 1/100000 s
Day / Night : IR-cut filter with auto switch (ICR); Smart IR
WDR : TWDR
S/N Ratio : >42 dB
Image Enhancement : BLC, HLC, AGC, 3D DNR, Defog
White Balance : Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warmlight Lamp / Daylight Lamp / Filament Lamp / Lock White Balance
Angle Adjustment : Pan 0~350°; Tilt 0~70°; Rotation 0~350°
Lens Type : Motorized
Focal Length : 2.8–12 mm
Lens Mount : Φ14
Aperture : F1.6
Iris Type : Fixed
Angle of View : Horizontal 102.9°–31.4°; Vertical 55°–17.9°; Diagonal 116.7°–36.1°
DORI Distance : Detect 56.00 m; Observe 22.22 m; Recognize 11.20 m; Identify 5.60 m
IR Range : Up to 30 m; 850 nm; 4 IR LEDs
Video Compression : S+265 / H.265 / H.264B / H.264M / H.264H
Main Stream : PAL: 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720); NTSC: 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream : PAL: 25fps (704×576, 704×288, 640×360, 352×288); NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Video Bit Rate : 32k~6 Mbps
ROI : 8 rectangular static areas
Privacy Mask : 4 black static areas
Audio Codecs : G.711A / G.711U / ADPCM_D; 8 kHz / 32 kHz / 48 kHz
Built-in Microphone : 1 built-in microphone
AI / Video Analytics : Smart alarm (human and vehicle detection)
Event Detection : Exception alarms: disk full, disk R/W error, IP address conflict, network disconnection; linkage: trigger recording, trigger capture, notify surveillance center
Network Interface : 1× RJ-45 (10/100 Base-T)
Protocols : RTSP, HTTP, TCP, UDP, UPnP, ICMP, SNMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, Unicast, ARP, FTP
API / Integration : P2P (mutually exclusive with Profile G); ONVIF (Profile S/T/G); SDK; CGI; Milestone
Concurrent Access : ≤2
Client Software : Easy7 VMS
Supported Browsers : IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Local Storage : microSD/microSDHC/microSDXC card support, up to 512 GB; ANR
Power Supply : DC12V ±25%; PoE: IEEE 802.3af
Power Consumption : Max. 6 W (DC); PoE max. 6.5 W
Protection Class : IP67
Impact Resistance : IK08
Lightning Protection : Surge 4000V; ESD 6000V
Material : Plastic housing
Dimensions : 120 (L) × 120 (W) × 90 (H) mm
Operating Temperature : -30 °C ~ 60 °C
Operating Humidity : ≤ 95% RH
