Honeywell IQ8Control C 808003

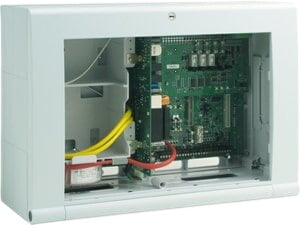

The IQ8Control C is a modular addressable fire alarm control panel. The basic unit is equipped with an enclosure including a standard back panel and a front frame for the operating panel surfaces, an interface board, a power supply module, and system software, and accepts micromodules and esserbus analog loop modules.
Modular addressable design
IQ8Control C offers support for intelligent addressable systems in a modular design.
Expansion support
Max. two micromodules and max. two esserbus analog loop modules can be installed.
Loop capacities
Each esserbus loop supports max. 127 esserbus devices (fire detectors and/or manual call points) and max. 32 transponders.
Scope of delivery
Enclosure, standard back panel and front frame, interface board, power supply module, and system software are included in the delivery; the operating front must be ordered separately.
Technical Specifications
Micromodule : Max. two micromodules
Esserbus loop module : Max. two esserbus analog loop modules
Device capacity : Max. 127 esserbus devices per loop
Transponder : Max. 32 esserbus transponders per loop
Nominal voltage : 230 V AC
Operating voltage : 12 V DC
Battery : 2 × 12 Ah; 2 × 24 Ah in expansion enclosure
Quiescent current : Approx. 215 mA (basic configuration, without operating unit)
Dimensions : W 450 mm × H 320 mm × D 185 mm
Weight : Approx. 6.5 kg
Material : ABS, 10% glass fiber reinforced
Color : Gray, similar to Pantone 538
Protection type : IP 30
Operating temperature : -5 °C ... +45 °C
Storage temperature : -5 °C ... +50 °C
Air humidity : < 95 %
Standards : VdS, BOSEC; revision according to EN 54
