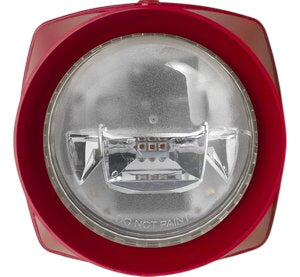

Honeywell 807224RR IQ8Alarm Plus/FSo Visual and Audible Alarm Device (Red, EN 54-3/EN 54-23)
Special pricing and installation support for 5+ units. Get a project quote
Honeywell 807224RR
The ESSER by Honeywell 807224RR IQ8Alarm Plus/FSo is a combined addressable sounder and visual alarm device for the addressable esserbus-PLus loop, compliant with EN 54-3 (sound) and EN 54-23 (visual) requirements, featuring a red housing and red flash, and includes an integrated short-circuit isolator compliant with EN 54-17 in every device.
Combined sound and visual alarm
Sound (EN 54-3) and visual (EN 54-23) functions are combined in a single device.
Addressable and with isolator
Operates with the esserbus-PLus powered loop and includes an integrated short-circuit isolator compliant with EN 54-17 in every device.
Wide acoustic options
Offers 91 / 97 dB(A) ± 2 dB sound levels, 20 programmable signal tones, and 8 volume levels.
Visual performance
Red flash, 0.5 Hz or 1 Hz frequency options, and W-2.4-5 to W-3.6-8 coverage ranges.
Technical Specifications
Model : 807224RR IQ8Alarm Plus/FSo
Features : Combined addressable sounder and visual alarm device (esserbus-PLus), red housing, red flash; compliant with EN 54-3 and EN 54-23, EN 54-17 integrated short-circuit isolator
Operating Voltage : 14 - 42 V DC (powered loop)
Standby Current @ 19 V DC : 55 µA
Load Factor (total) : 4.5 - 10.9
Integrated Isolator : Yes, one per device
Loop Capacity : Powered loop, max. 21 devices/loop
Terminal Capacity : Max. 1.5 mm²
Sound Level : 91 / 97 dB(A) ± 2 dB @ 1 m / @ 90° angle / DIN tone
Signal Tones : 20 programmable signal tones, including DIN tone according to DIN 33404 Part 3
Volume Levels : 8 programmable levels
Flash Color : Red
Flash Frequency : 0.5 Hz / 1 Hz
Coverage : W-2.4-5 (60 m³) – W-3.6-8 (230 m³)
Light Intensity : Approx. 6.6 cd eff.; max. 17 cd eff. @ W-3.6-8
Coverage Category : W (wall-mounted)
Dimensions : Ø 112 mm, depth 78 mm (95 mm with IP base)
Weight : Approx. 300 g (including base)
Material : Polycarbonate
Color : Red, similar to RAL 3020; calotte translucent / partially frosted
Mounting : Wall mounting, flat base (standard)
Mounting Base Options : Flat base (standard, wall-mounted) - supplied; 806202 IP base, red, weatherproof, IP 56 - optional accessory
Operating Temperature : -10 °C to 55 °C
Storage Temperature : -25 °C to 75 °C
Air Humidity : < 95 % (non-condensing)
Ingress Protection : IP 43; IP 56 with optional IP base 806202
Approvals : VdS approval; compliant with EN 54-3 and EN 54-23; EN 54-17 integrated isolator
