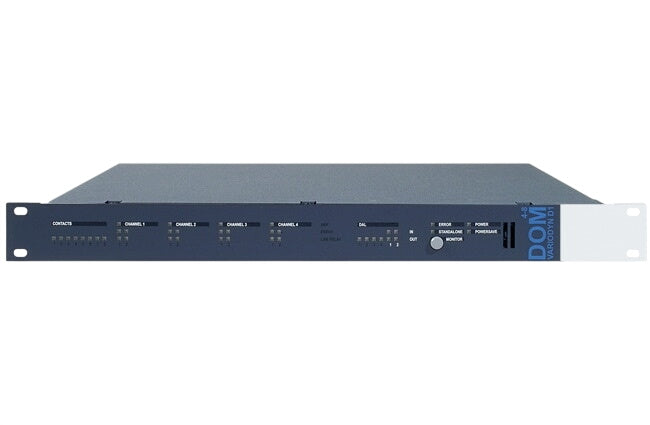

Honeywell 583361.22 VARIODYN D1 Digital Output Module DOM4-8 (4 Channel Amplifier, 8 Speaker Zones, 16 Message Slots)
Special pricing and installation support for 5+ units. Get a project quote
Honeywell 583361.22
The DOM4-8 digital output module designed for VARIODYN D1 systems provides 4 independent amplifier channels, operation with up to 8 speaker zones, and 16 audio slots with a total of 1 hour of message memory.
4 Independent Amplifier Channels
Offers 4 independently operating amplifier channels.
Speaker Zone Support
Enables operation with up to 8 speaker zones or 4 speaker circuits in loop (A/B) technology.
Audio Memory
Provides 16 audio slots with a total of 1 hour of message memory.
Network and Emergency Power
Supports remote monitoring and configuration via Ethernet; operates with 24 V DC emergency power supply.
Technical Specifications
Model : 583361.22
Product Type : Digital output module (amplifier / output stage) for VARIODYN D1 public address and voice alarm system
Amplifier Channels : 4 independent amplifier channels
Speaker Zones : Max. 8 speaker zones or 4 speaker circuits (loop A/B technology)
Audio Slots : 16 audio slots · Total 1 hour message memory
Transmission Frequency : 20 Hz - 20000 Hz
System Input Impedance : approx. 200 Ohm
Total Harmonic Distortion : 0.03 % (1 kHz)
Automatic Volume Control : Supported
Power Supply : 24 V DC emergency power supply
Network Interface : Ethernet (for remote monitoring and configuration)
Format : 19 inch rack mount, 1 HU
Dimensions : 483 mm (W) × 44 mm (H) × 345 mm (D)
Weight : approx. 5.7 kg
Operating Temperature : -5 °C … +55 °C
Air Humidity : < 93 % non-condensing
Standards : EN 54-16, EN 60849, EN 50849
Related Part Number : 583362.22 Digital Output Module DOM4-24
