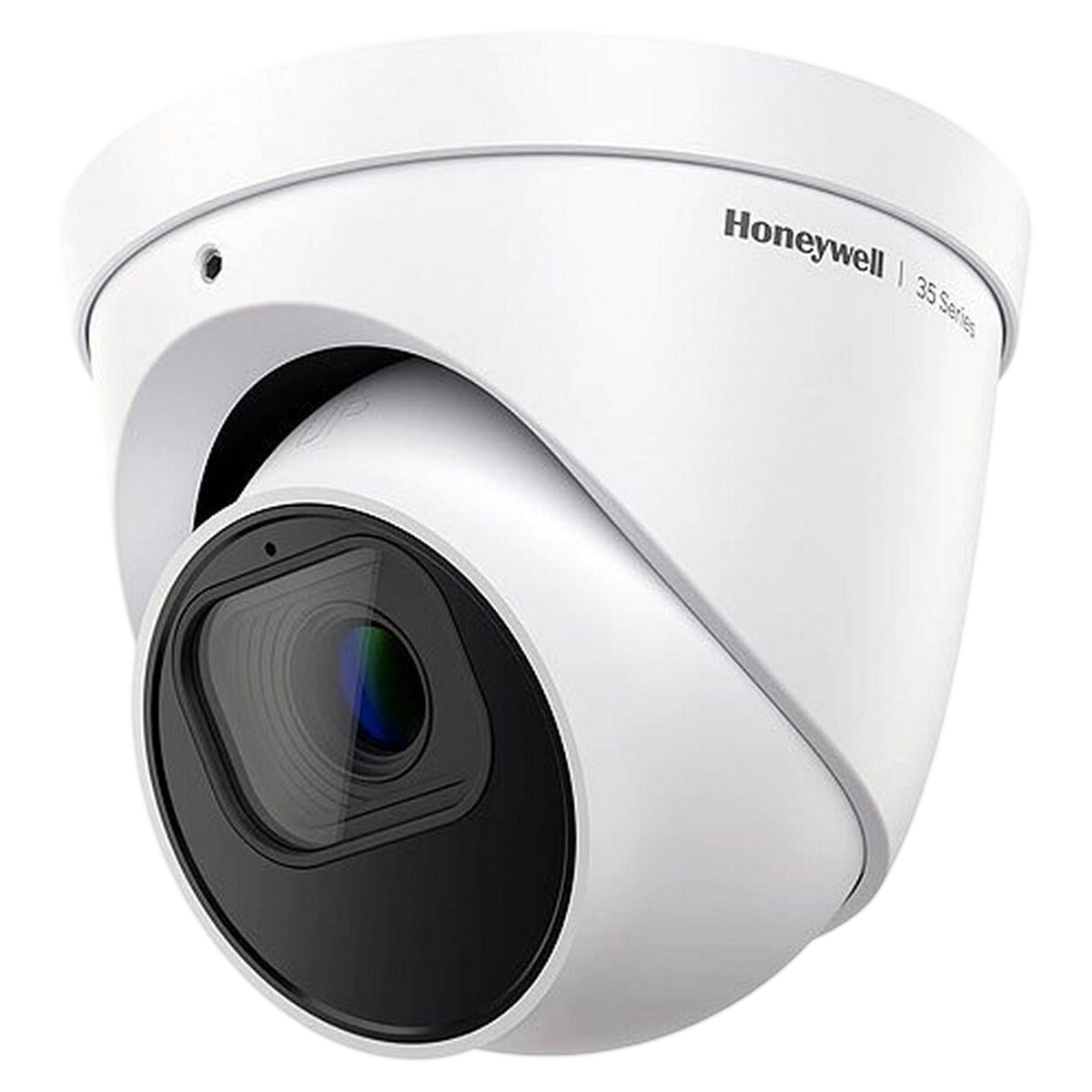

Honeywell HC35WE5R3 5 MP Outdoor Turret IP Camera (WDR 120 dB, 2.8 mm Lens, IR 40 m, PoE)
Special quotes and installation support for project and bulk purchases. Get a project quote
Honeywell HC35WE5R3
The Honeywell HC35WE5R3 is a 1/2.8″ 5 Megapixel fixed-lens ball/turret type outdoor IP camera with True WDR 120 dB, IR night vision, and PoE support.
True WDR 120 dB
Provides detail in high-contrast scenes with True WDR 120 dB.
IR Night Vision 40 m
Offers night vision support with an IR distance of 40 m and 3 IR LEDs.
PoE and DC Power
Operates with DC 12 V 1 A power supply or PoE (IEEE 802.3af).
Local Micro SD Storage
Supports a maximum capacity of 256 GB with a Micro SD / SDHC / SDXC slot.
Specifications
Image Sensor : 1/2.8″ 5 Megapixel progressive scan CMOS
Resolution : 2592x1944 (5 MP)
Min. Illumination : 0.005 Lux/F2.0 (Color, 30 IRE); 0 Lux/F2.0 (IR ON)
IR Range : IR distance 40 m; Number of IR LEDs 3; IR control Smart IR (Auto/Manual) / Off; Day/Night Auto (ICR) / Color / Black and White
WDR : True WDR 120 dB
S/N Ratio : More than 50 dB
Shutter Speed : 1/8 ~ 1/32,000 s
Privacy Mask : Off / On (4 Areas)
ROI : 8
Video Standard : NTSC / PAL
Pan Range : 0° - 360°
Tilt Range : 0° - 80°
Rotation Range : 0° - 360°
Focal Length : 2.8 mm Fixed Lens
Angle of View : H: 88° V: 65°
Aperture : F1.6
Video Compression : H.265 HEVC, H.264, MJPEG
Main Stream : 2592x1944 30/25 fps; 2592x1520 / 1920x1080 / 1280x720 1-30/25 fps
Sub Stream : 704x576 (PAL) / 704x480 (NTSC) / 640x480 / 352x288 (PAL) / 352x240 (NTSC) 1~25/30 fps
Third Stream : 1920x1080 1~12 fps; 640x480 / 352x288 / 352x240 / 320x240 1~25/30 fps
Frame Rate : Max. 30 fps
Video Bit Rate : 100K ~ 12 Mbps
Image Enhancement : WDR, BLC, HLC, Defog, 2D/3D DNR
AI / Video Analytics : Motion detection, Smart Motion Detection (SMD), Tamper detection, Intrusion, Multi Loitering, People Counting
Audio Input / Output : 1 audio line input, 1 audio line output; 2-way full duplex
Audio Codecs : G711A / G711U
Network Interface : 10 Base-T / 100 Base-TX Ethernet (RJ-45)
Protocols : IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP/RTP/RTCP, IGMP/Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
ONVIF : S / G / T
Number of Users : 10 users
Supported Browsers : Chrome 91+; Edge 92+
Cyber Security : User account and password protection, HTTPS, IP filter, Digest authentication, TLS 1.2, Stream encryption, AES-128/256, SSH/Telnet closed, 802.1X, PCI-DSS compliance
Local Storage : Micro SD / SDHC / SDXC, max. 256 GB
Power Supply : DC 12 V 1 A; PoE (IEEE 802.3af) Class 0
Power Consumption : Max. 5.13 W
Operating Temperature : -40°C ~ 60°C (IR OFF)
Operating Humidity : Less than 90%, non-condensing
Dimensions : Ø110.0 mm × 94.4 mm (Ø4.33″ × 3.72″)
Weight : Approx. 0.6 kg
Material : Die-cast aluminum
Protection Class : IP66 / IP67
Color : RAL 9003; Pantone Black
Alarm Input : 1 on-board alarm input (for normally open or normally closed dry contacts)
Alarm Output : 1 on-board alarm dry contact output, 0.5 A @ 24 V DC
Compatible Mounting Accessories : HA35PMC03, HA35CLM01, HA35CLM02, HA60JCBH1, HA60WLMB1, HA60PLMZ, HA60CNMZ
Certifications : UL Listed to UL/CSA 62368-1, CE, FCC Part 15, RoHS, RCM, UKCA
