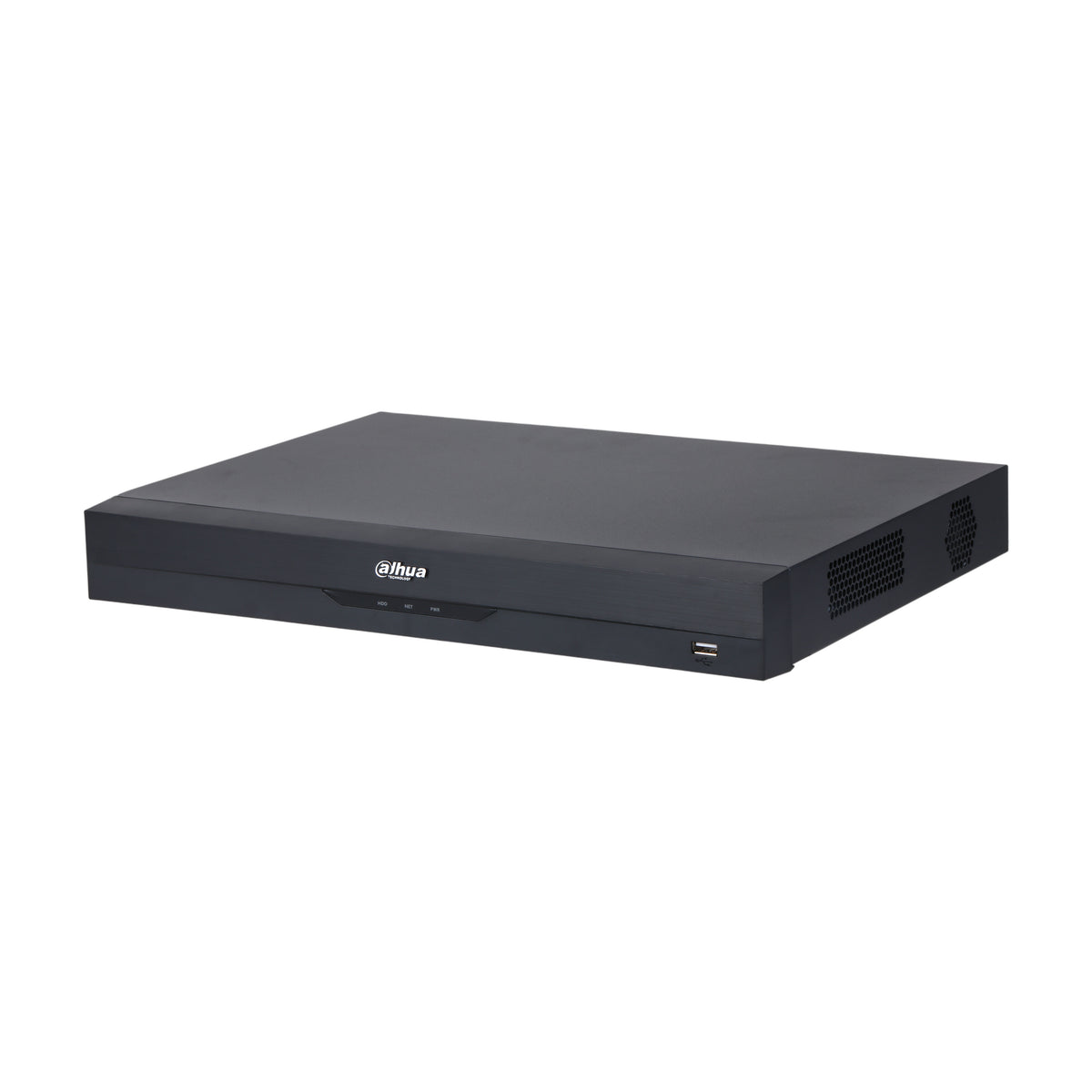

Dahua NVR5208-EI
The Dahua NVR5208-EI is an 8-channel 1U network video recorder that provides recording with 2×SATA disk bays; it supports WizSense AI with a dedicated AI chip and deep learning. It uses Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression formats, offers a max. 384 Mbps network bandwidth (200 Mbps with AI enabled) and 4K HDMI output; there is no built-in PoE, and it can be installed in a rack or on a desktop.
8 Channel Recording
Supports simultaneous recording on 8 channels.
WizSense AI
Dedicated AI chip and deep learning capabilities with WizSense AI.
Video Compression
Supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG.
Storage
2× SATA bays, each disk max. 20 TB; supports disk group and iSCSI.
Technical Specifications
Model : DHI-NVR5208-EI
Number of Channels : 8 channels
Video Compression : Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
Max. Decoding : 32×1080p@30fps or 8×8MP@30fps
Network Bandwidth : Max. 384 Mbps (200 Mbps with AI enabled)
AcuPick : 8 channels
Clustering : N+M
AI (recorder) : 2 channels face detection and recognition; 4 channels perimeter protection; 8 channels SMD Plus
AI (camera) : face detection and recognition; perimeter protection; SMD Plus; video metadata; ANPR; stereo analysis; heat map; people counting; crowd distribution; vehicle density
Face Database : 20 databases / 20,000 images
Video Output : 1× HDMI (3840×2160/4K), 1× VGA, heterogeneous output
Multi-Screen : Main 1/4/8/9 Sub 1/4/8/9
Playback : 8 channels
POS Recording : Supported
Network Interface : 1× RJ-45 10/100/1000 Mbps
Third-Party : ONVIF, Panasonic, Sony, Axis, Pelco, Hanwha
iSCSI : Supported
Disk : 2× SATA, each disk max. 20 TB
USB : front 1× USB 2.0, rear 1× USB 3.0
Interfaces : RS-232, RS-485
Audio : 1 channel RCA input/output
Alarm Input : 4 channels
Alarm Output : 2 channels
Power Supply : 12VDC 4A
Power Consumption : ≤10 W (without HDD)
Dimensions : 375.0×284.4×56.0 mm
Net Weight : 1.57 kg
Operating Temperature : -10 °C ~ +55 °C
Mobile : iOS / Android
Mounting : Rack or desktop
Compatibility : VMS compatible
