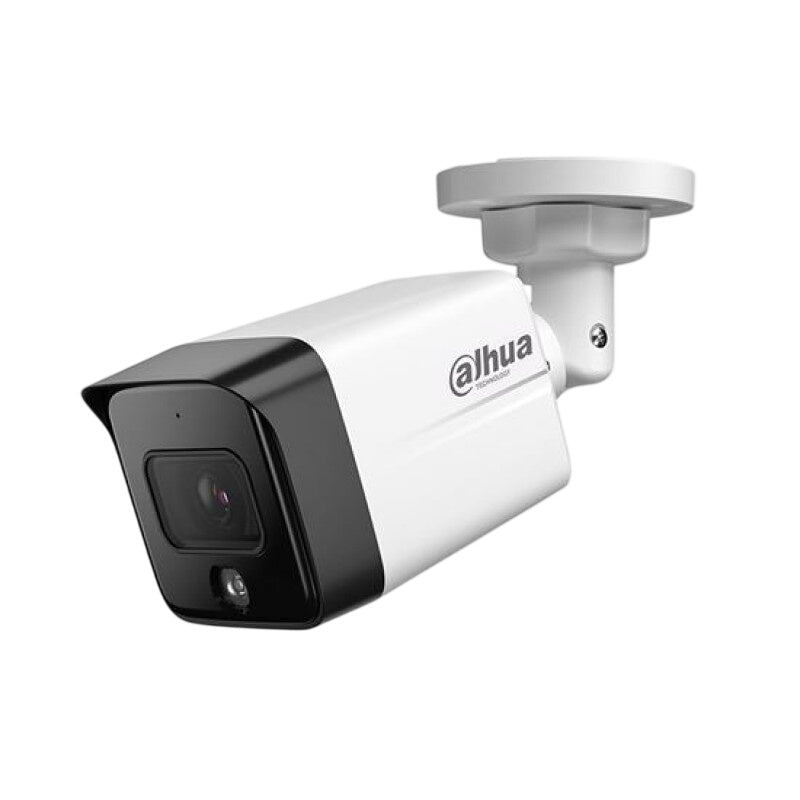

Dahua IPC-HFW1230TC1-SA 2 MP Outdoor Bullet IP Camera (IR 30 m, Human/Vehicle Detection, Built-in Mic, PoE, IP67)
Special quotes and installation support for project and bulk purchases. Get a project quote
Dahua IPC-HFW1230TC1-SA
Dahua IPC-HFW1230TC1-SA is an Entry series fixed-lens bullet IP camera with a 1/2.8″ 2 MP CMOS sensor, offering 1920×1080@25/30 fps, H.265, integrated IR for 30m night vision, DWDR, a built-in microphone, and human/vehicle detection (SMD). With 12 VDC/PoE and IP67, it's an economical outdoor solution for homes, offices, and small businesses.
2 MP Clear Image
1920×1080@25/30 fps recording with 1/2.8″ CMOS.
IR 30 m
1 IR LED and Smart Illumination; automatic IR intensity based on target distance.
Human/Vehicle Detection
Human and vehicle classification with SMD; reduces false alarms.
Built-in Microphone + H.265
Audio recording; H.265 low bitrate, IP67 outdoor durability.
Technical Specifications
Image Sensor : 1/2.8″ 2 MP CMOS
Resolution : 1920×1080@25/30 fps
Min. Illumination : 0.01 lux@F2.0 (Color); 0 lux (IR on)
IR Range : 30 m (IR)
WDR : DWDR
Lens Type : Fixed focus, M12
Focal Length : 2.8 / 3.6 mm
Aperture : F2.0
Angle of View : 2.8 mm: H98° / V53° / D118°
DORI Distance : 2.8 mm: Detect 46.9 m / Observe 18.8 m / Recognize 9.4 m / Identify 4.7 m
Video Compression : H.265 / H.264 / MJPEG
Smart Coding : Smart H.265+ / Smart H.264+
Number of Streams : 2 streams
Day / Night : Auto (ICR) / Color / Black-and-White
Image Enhancement : DWDR, 3D NR, BLC, HLC, Smart Illumination
SMD : Human/vehicle detection and classification
Event Detection : Motion detection, video tampering, audio detection
Audio Input / Output : Built-in microphone; G.711a / G.711Mu / PCM / G.726
Network Interface : RJ-45 (10/100 Base-T)
ONVIF : Profile S / G / T; CGI; P2P
Power Supply : 12 VDC / PoE (802.3af)
Power Consumption : Max. 4.0 W (PoE)
Operating Temperature : -40 °C ~ +60 °C
Local Storage : microSD max. 256 GB
Network Storage : FTP
Protection Class : IP67
Material : Metal + Plastic
Weight : 0.31 kg
Delivery & Return Terms
Delivery: Within North Cyprus in 72 hours · Free delivery on orders of 10,000 TL and above, 300 TL below that · Store Pickup free of charge
Returns: 14-day right of withdrawal · Unused and in original packaging
Warranty: All products carry a 12-month warranty backed by FAV Technology.
