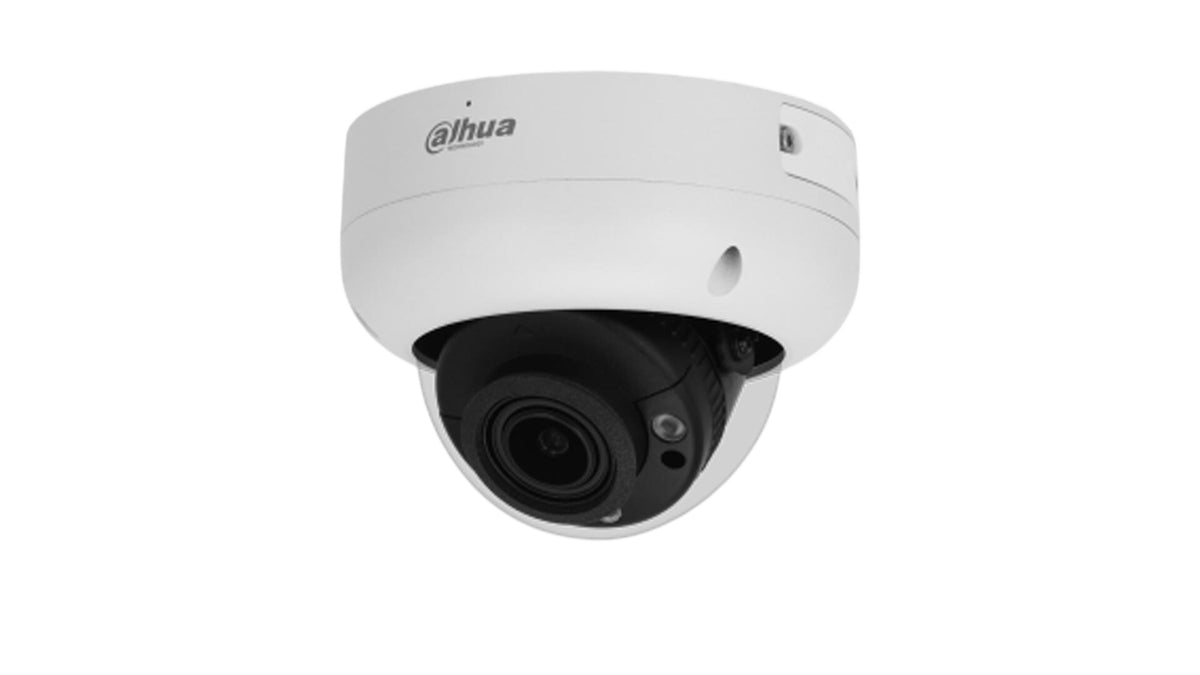

Dahua IPC-HDBW3441R-ZAS 4 MP Outdoor Motorized Varifocal Dome IP Camera (WizSense, IR 40 m, SMD 4.0, Face Detection, IP67/IK10)
Special quotes and installation support for project and bulk purchases. Get a project quote
Dahua IPC-HDBW3441R-ZAS
The Dahua IPC-HDBW3441R-ZAS is a WizSense dome IP camera with a 1/3″ 4 MP CMOS sensor and a motorized varifocal (2.7–13.5 mm) lens, providing 2688×1520@25/30 fps video; it offers H.265/H.264 and AI encoding, 40 m IR night vision, 120 dB WDR, and IP67/IK10 protection. It features IVS perimeter protection, face detection, SMD 4.0, AI SSA, a built-in microphone with audio and alarm input/output; suitable for outdoor use with 12 VDC/PoE.
4 MP Resolution
Provides detailed image recording at 2688×1520@25/30 fps.
Motorized Varifocal
2.7–13.5 mm motorized lens and F1.5 aperture for remote angle of view adjustment.
40 m IR + WizSense
3 IR LEDs, 40 m range; IVS perimeter protection, face detection, and SMD 4.0.
Audio & Durability
Built-in microphone, 1 audio in/out, and 1 alarm in/out; metal body, IP67/IK10.
Technical Specifications
Image Sensor : 1/3″ 4 MP CMOS
Resolution : 2688×1520@25/30 fps
Min. Illumination : IR 40 m (3 LEDs); min. 0.005 lux@F1.5
WDR : 120 dB
Lens Type : Motorized varifocal
Focal Length : 2.7–13.5 mm
Aperture : F1.5
Angle of View : Horizontal 104°–29°; Vertical 54°–16°
DORI Distance : Wide angle Detect 64 m; Tele Detect 210 m / Recognize 42 m
Video Compression : H.265 / H.264 / MJPEG; AI H.265/H.264
Number of Streams : 3 streams
Image Enhancement : WDR 120 dB, 3D NR, EIS, BLC, HLC, Defog, AI SSA
IVS : Tripwire, intrusion (human/vehicle classification)
Face : Face detection
SMD : SMD 4.0; Quick Pick
Audio Input / Output : Built-in microphone; audio 1in/1out (RCA); G.711/G.726/G.723/PCM
Alarm Input / Output : 1 input / 1 output
ONVIF : Profile S / G / T; CGI; P2P
Power Supply : 12 VDC / PoE (802.3af)
Power Consumption : Max. 9.2 W (PoE)
Operating Temperature : -30 °C ~ +60 °C
Local Storage : microSD max. 256 GB
Network Storage : NAS, FTP/SFTP
Protection Class : IP67
Impact Resistance : IK10
Material : Metal
Dimensions : 94 mm × Φ122 mm
Weight : 713 g
