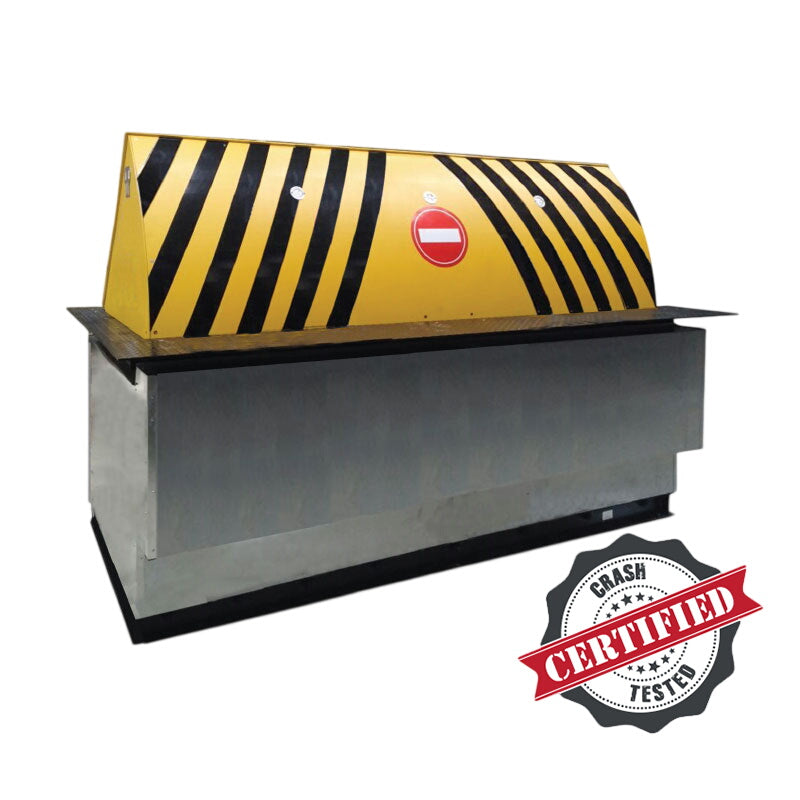

CAME-ÖZAK HRB Hydraulic Road Blocker (65–50 cm or 90–70 cm, M50 (K-12))
CAME-ÖZAK HRB is a high-security hydraulic road blocker with anti-terrorism features and M50 (K-12) crash test certification; it offers 50 T axle load resistance, width options from 1.0 m to 6.5 m and adjustable lifting height.
High impact resistance
Certified for M50 (K-12) crash resistance.
Axle load resistance
Axle load resistance is specified as 50 T.
Adjustable lifting height
Lifting height is adjustable in 5 cm increments within the 65–50 cm or 90–70 cm range.
Width options
Width options range from 1.0 m to 6.5 m; single-piston configurations for 1–4 m and double-piston configurations for 4.5–6.5 m are available.
Technical Specifications
Impact Resistance Certificate (K-Rating) : M50 (K-12)
Width Options : 1.0 m to 6.5 m (in 0.5 m increments)
Cabinet Dimensions (underground unit, WxDxH) : 1000 x 570 x 1200 mm
Power Supply : 380V AC 3-phase 50/60 Hz; optional 220V/110V single-phase; optional 24V DC
Power Consumption (Standby / Maximum) : 3.3–7.5 kVA motor (varies by size)
Boom / Block Opening-Closing Time : ~2.5–6 s (opening/closing, depending on size); emergency raise ~1.5 s with optional hydraulic accumulator
Operating System : Hydraulic motorized
IP Protection Rating : IP55 (hydraulic power unit); IP67 (electronics, optional, with box/enclosure); IP68 (hydraulic piston)
