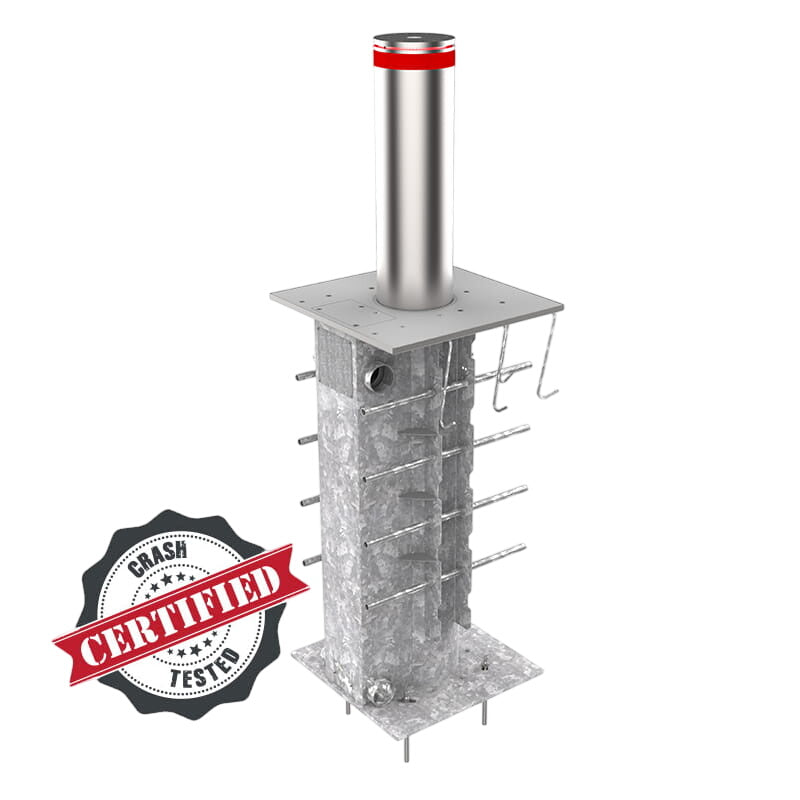

CAME-ÖZAK HBD/8 Retractable Bollard (Ø270/324 mm, M40 (K-8), Hydraulic)
Anti-terrorism high-security hydraulic bollard. A hydraulic retractable model certified to the M40 (K-8) crash test, designed for heavy duty.
Impact Resistance Certificate
An anti-terrorism solution certified to the M40 (K-8) crash test.
Power and Control
Standard 380V AC 3-phase 50/60 Hz supply; 2.2–5.5 kW motor; optional 220V/110V single-phase and 24V DC emergency options.
Speed and Operation
Opening/closing time ~2.5–5 s; ~1.5 s with the emergency raise option.
Body and Dimensions
Bollard cylinder Ø270/324 mm; body dimensions 595 x 495 mm; cabinet dimensions 1000 x 570 x 1200 mm.
Technical Specifications
Impact Resistance Certificate (K-Rating) : M40 (K-8)
Body Material : Hot-dip galvanized steel
Boom / Block Material : Ø270 and 324 mm hot-dip galvanized steel, 10 mm wall thickness, eccentric 65–90 mm solid steel star-shaped reinforcement
Overall Body Dimensions (WxDxH) : 595 x 495 mm
Cabinet Dimensions (W x D x H) : 1000 x 570 x 1200 mm
Underground Anchor Casing : Ø338/420 mm hot-dip galvanized steel casing
Power Supply : Standard 380V AC 3-phase 50/60 Hz; optional 220V/110V single-phase; optional 24V DC emergency
Power Consumption (Standby / Maximum) : 2.2–5.5 kW motor (varies with the number of bollards in the system)
Boom / Block Opening-Closing Time : ~2.5–5 s (opening/closing, depending on the number of bollards in the system); emergency raise ~1.5 s (with optional hydraulic accumulator)
Operating System (Manual / Motorized) : Automatic (Hydraulic)
IP Protection Rating : IP55 (hydraulic power unit); IP67 (electronics, optional); IP68 (hydraulic piston)
