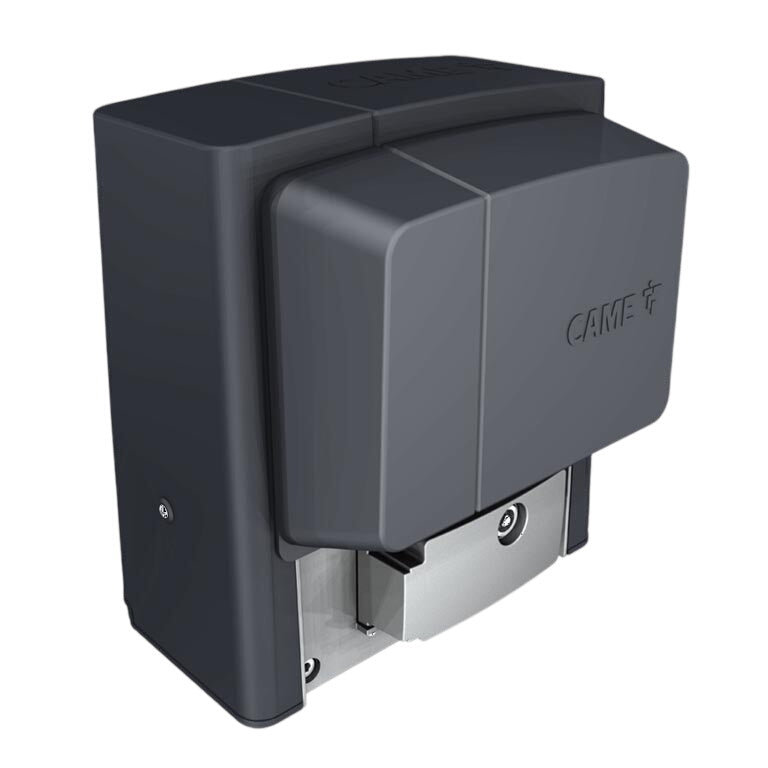

CAME-ÖZAK BX Sliding Gate Operator (400/800 kg, 14 m, 230V AC)
Special quotes and installation support for project and bulk purchases. Get a project quote
CAME-ÖZAK BX
BX operator designed for sliding gates; the maximum gate weight is 400 kg (801MS-0020) / 800 kg (801MS-0030) and the maximum gate length is 14 m, operating on 230V AC. It includes a control panel with keypad and LCD display, built-in fault diagnostics and encoder-based movement control.
Maximum Capacity Options
Maximum gate weight 400 kg (801MS-0020) / 800 kg (801MS-0030).
Power Supply and Motor Power
230V AC supply with 560 W (801MS-0020) or 520 W (801MS-0030) motor power options.
Encoder-Controlled Movement
Provides position tracking with encoder-based movement control.
Remote Management
Remote control and management support via the CAME Key connection slot and CAME Connect Technology.
Technical Specifications
Maximum Gate/Leaf Weight : 400 kg (801MS-0020) / 800 kg (801MS-0030)
Maximum Gate/Leaf Length : 14 m
Power Supply : 230V AC
Motor Power : 560 W (801MS-0020) / 520 W (801MS-0030)
Current Draw : 2.7 A (801MS-0020) / 2.5 A (801MS-0030)
Pulling / Pushing Force : 600 N (801MS-0020) / 800 N (801MS-0030)
Motor Thermal Protection Temperature : 150 °C
Encoder : Yes - encoder-based movement control
Pinion Module : 4
Smart Control / Remote Management Feature : Control panel with keypad and LCD display; built-in fault diagnostics; rolling-code RF decoder with 250-user capacity; memory module; CAME Key connection slot; remote control and management with CAME Connect Technology.
Protection Class (IP) : IP44
Operating Temperature Range : -20 / +55 °C
Duty Cycle : %30
Operating Speed (m/min) : 10.5 m/min
Cycles per Hour : 17
