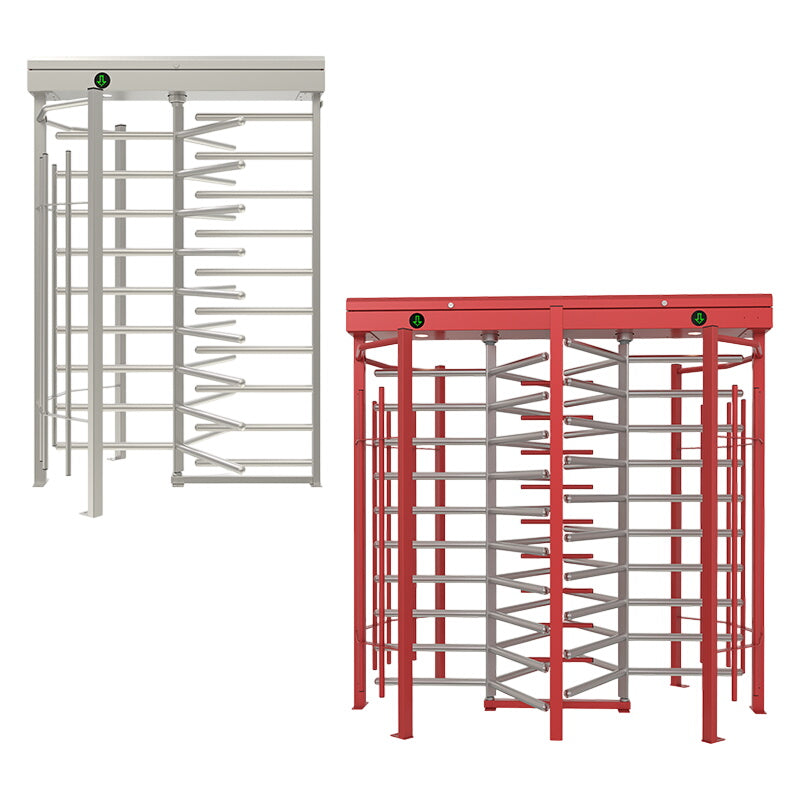

CAME-ÖZAK BTC 300 S / D Full-Height Turnstile (Single Passage / Double Passage, Hot-Dip Galvanized Steel)
Special quotes and installation support for project and bulk purchases. Get a project quote
CAME-ÖZAK BTC 300 S / D Full-Height Turnstile (Single Passage / Double Passage, Hot-Dip Galvanized Steel)
BTC 300 S and BTC 300 D full-height turnstiles are designed for indoor and outdoor applications requiring high-level security and pedestrian access control; they comply with the UK H&S Standard. They provide more comfortable passage compared to 4-arm versions, and double (D) versions provide two passage lanes with a single installation.
Single/Double passage version options
With BTC 300 S single passage and BTC 300 D double passage options, it meets different installation needs.
Body and durability (D)
The BTC 300 D model has a surface finish of electrostatic powder coating on hot-dip galvanized steel.
Passage capacities
Manual and motorized nominal and maximum passage rates for S and D versions are specified in the datasheet (e.g. D version nominal ~50 passages/min, maximum 96 cycles/min manual).
Emergency behavior
Both versions provide free passage in both directions in case of power failure (fail safe).
Technical Specifications
Body Material : (D): Electrostatic powder coating on hot-dip galvanized steel
Body Surface Finish : (D): Electrostatic powder coating
Arm / Wing Material : (D): Galvanized steel, Ø42×2.5 mm
Net Passage Width / Height : (S): 2120 mm passage height (optional)
Power Supply : (S): 110/220V AC 50/60 Hz, 24V DC; (D): 110/220V AC 50/60 Hz, 24V DC
Power Consumption (Standby / Passage) : (S): ~8.1W standby, ~7.6W during passage; (D): ~16.2W standby, ~7.6+7.6W during passage
Passage Capacity (Nominal / Maximum) : (S) Manual: max. 48 cycles/min, nominal: ~25 passages/min; Motorized: max. 40 cycles/min, nominal: ~20 passages/min; (D) Manual: max. 96 cycles/min, nominal: ~50 passages/min; Motorized: max. 80 cycles/min, nominal: ~40 passages/min
Operating Mode : (S): Bidirectional (entry-exit); (D): Bidirectional (entry-exit)
Rotor / Number of Arms : (S): Three-section rotor (120°), 9 removable arms per section (10 optional); (D): Two three-section rotors (120°), each with 10+10 removable arms (11+11 optional)
Application Area : (S): Indoor and outdoor; (D): Indoor and outdoor
Operating Temperature and Humidity Range : (S): -20°C/+68°C (-50°C with optional heater), RH 95% non-condensing; (D): -20°C/+68°C (-50°C with optional heater), RH 95% non-condensing
Duty Cycle : (S): 100%, 24/7 use; (D): 100%, 24/7 use
Emergency / Power Failure Behavior : (S): Free passage in both directions (fail safe); (D): Free passage in both directions (fail safe)
Weight : (S): ~175 kg; (D): ~335 kg
Operating System (Manual / Motorized) : Manual and Motorized
Standard Compliance : Complies with the UK H&S Standard
