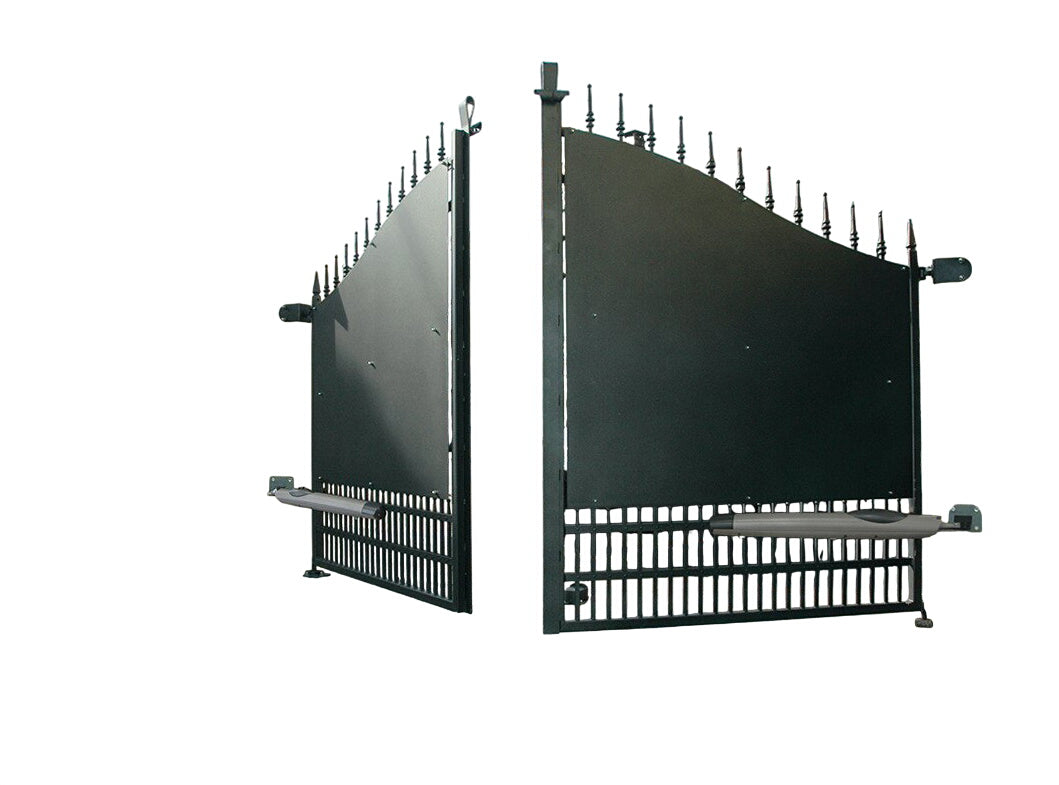

CAME-ÖZAK AXO Swing Gate Operator (Straight Arm, Max. Leaf Length 7 m / Max. Leaf Weight 300–500 kg, 24 V DC / 230 V AC)
Special quotes and installation support for project and bulk purchases. Get a project quote
CAME-ÖZAK AXO
AXO is a high-performance swing gate operator designed for residential and site applications; it offers 24 V DC and 230 V AC power options, a cast aluminum body and integrated adjustable mechanical limit switches. Leaf weight and length vary according to the variant table; the maximum leaf length is 7 m and the highest leaf weight in the AXO variant table is 500 kg (the series as a whole covers models up to 1000 kg).
Straight-Arm Design
AXO is designed as a straight-arm type for swing gates.
Power Options
Available with 24 V DC and 230 V AC, 50/60 Hz power options.
Construction and Thermal Protection
It has a cast aluminum body and the motor thermal protection is specified as 150°C.
Operation and Limit Control
24 V DC models are ready to operate during mains power failures and have integrated adjustable mechanical limit switches.
Technical Specifications
Arm Type : Straight arm
Maximum Gate/Leaf Weight : 300–500 kg (varies by variant; highest in the variant table is 500 kg)
Maximum Gate/Leaf Length : Varies by model (3 m, 4 m, 5 m, 7 m); maximum 7 m
Power Supply : 24 V DC; 230 V AC, 50/60 Hz
Motor Power : 120 W (24 V models); 175 W (230 V models)
Current Draw : 10 A max. (24 V models); 1.5 A (230 V models)
Motor Thermal Protection Temperature : 150°C
Pulling / Pushing Force : 500–4500 N
Protection Class (IP) : IP44
Operating Temperature Range : -20°C to +55°C
Duty Cycle : 30–50% (varies by model)
Variants / Order Codes
001AX3024 : 24 V DC, maximum leaf length 3 m, maximum leaf weight 500 kg, irreversible
001AX302304 : 230 V AC, maximum leaf length 3 m, maximum leaf weight 500 kg, irreversible
001AX312304 : 230 V AC, maximum leaf length 3 m, maximum leaf weight 500 kg, reversible
001AX402306 : 230 V AC, maximum leaf length 4 m, maximum leaf weight 300 kg, irreversible
001AX412306 : 230 V AC, maximum leaf length 4 m, maximum leaf weight 300 kg, reversible
001AX5024 : 24 V DC, maximum leaf length 5 m, maximum leaf weight 400 kg, irreversible
001AX71230 : 230 V AC, maximum leaf length 7 m, maximum leaf weight 300 kg, reversible
