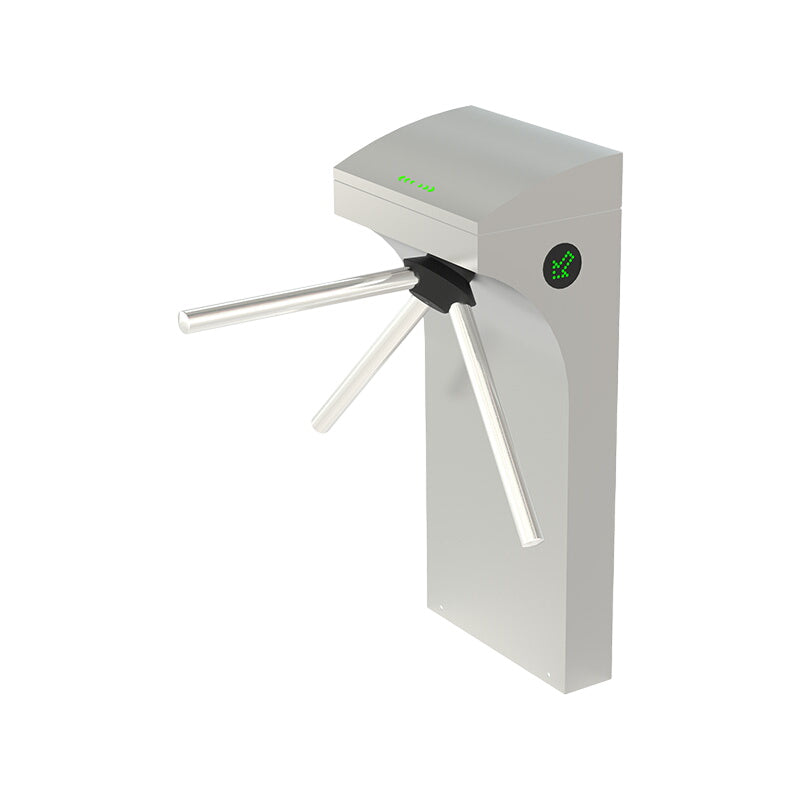

CAME-ÖZAK 602 Tripod Turnstile (Bidirectional, 304 Stainless Steel, Medium Security)
Special quotes and installation support for project and bulk purchases. Get a project quote
CAME-ÖZAK 602
A single-pedestal tripod turnstile that stands out with its special body design, suitable for any venue requiring medium-level security and pedestrian access control.
Tripod design
The single-pedestal tripod structure provides access control suited to a medium security level.
Stainless body
The body is made of grade 304 stainless steel (grade 316 optional).
Indoor and outdoor use
Suitable for both indoor and outdoor use, and for 24/7 operation at a 100% duty cycle.
LED indicators and low consumption
Side status/direction indicator and top passage indicator are LED as standard; consumption is ~3.4W in standby and ~2.7W during passage.
Technical Specifications
Body Material : Grade 304 stainless steel (grade 316 stainless steel optional)
Body Surface Finish : Orbital brushed matte (electrostatic powder coating optional)
Arm / Wing Material : Ø40×2 mm grade 304 stainless steel, individually demountable (grade 316 optional)
Indicator / Signaling Type : LED (side status/direction indicator and top passage indicator), standard
Power Supply : 110/220V AC 50/60 Hz (±10%), 24V DC
Power Consumption (Standby / Maximum) : ~3.4W standby / ~2.7W during passage (varies with options and accessories)
Passage Capacity (Nominal / Maximum) : Manual: nominal ~30 passages/min, max. 82 cycles/min; Motorized: nominal ~25 passages/min, max. 75 cycles/min.
System Direction (Uni/Bidirectional) : Bidirectional (entry-exit)
Rotor / Number of Arms : Tripod (3-arm rotor)
Application Area : Indoor, outdoor
Operating Temperature and Humidity Range : -20°C/+68°C (-50°C with optional heater); relative humidity 95%, non-condensing
Duty Cycle : 100%, 24/7 use
Emergency / Power Failure Behavior : Free passage in both directions (fail-safe); compatible with fire alarm systems; various configurable passage options during power failure
Weight : ~35 kg
Operating System (Manual / Motorized) : Electromechanical manual operation (electromechanical motorized operation optional)
