Öne Çıkanlar
4 MP AcuSense Motorlu Varifokal Kubbe Ağ Kamerası modeli; verimli sıkıştırma, güçlü donanım ve geniş özellik setiyle profesyonel güvenlik projeleri için uygundur.

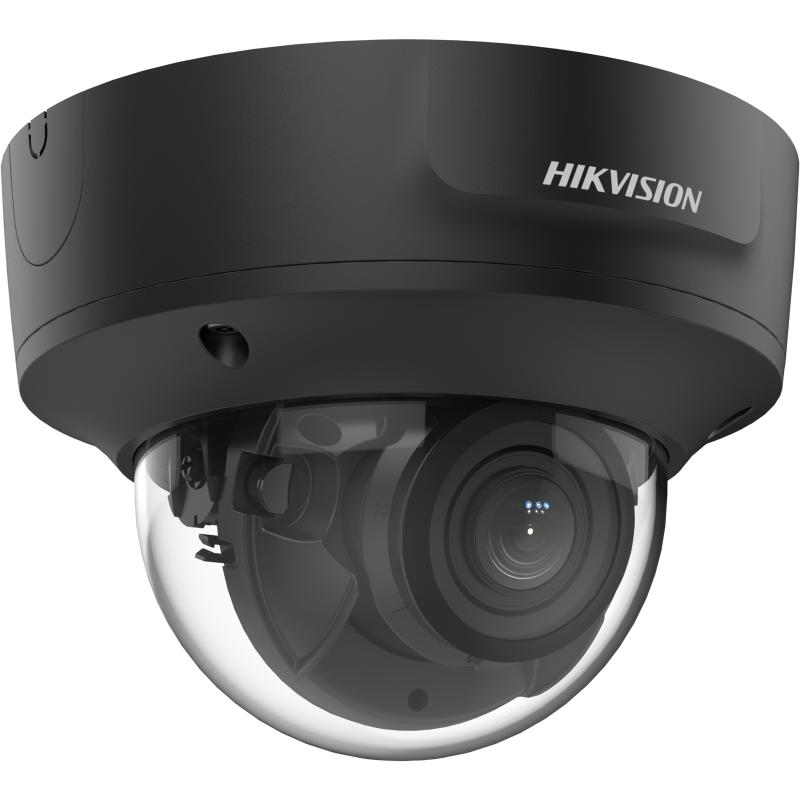

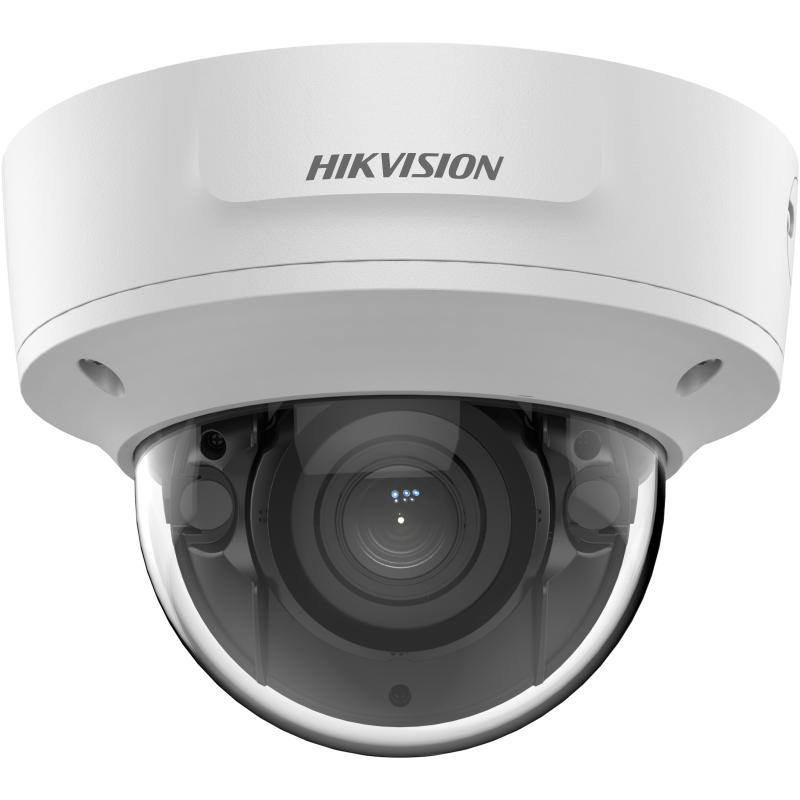

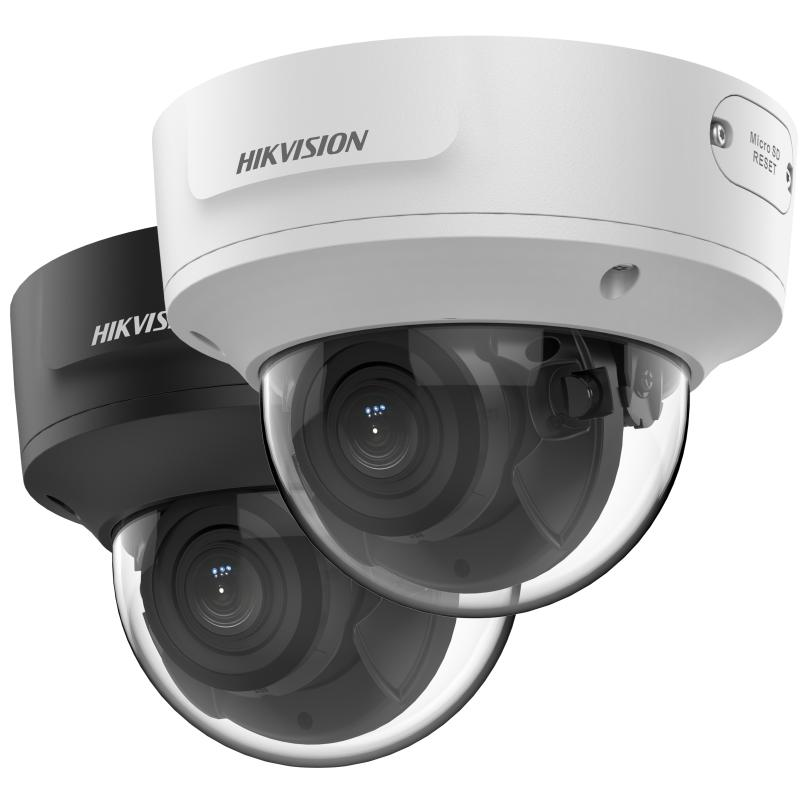

4 MP AcuSense Motorlu Varifokal Kubbe Ağ Kamerası
Min. Illumination Color, Third Stream 50 Hz, H.265+, H.265, Video Compression Main stream, Web Browser Plug-in required live view
3232:+A1:0 deg0.005003:10100
Ana Özellikler
- Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- DORI 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
- Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Teknik Detaylar
Min. Illumination Color0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Angle Adjustment Pan0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
DORI 2.8 to 12 mmD: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
Main Stream 50 Hz25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main streamH.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
User/Host Up to 32 users. 3 user levelsadministrator, operator and user
Web Browser Plug-in required live viewIE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Audio -S1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm -S1 input, 1 output (max. 12 VDC, 30 mA)
Material Upper cover and basemetal Bubble: plastic
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 550322015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-12005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Protection IP67 (IEC 60529-2013), IK10 (IEC 622622002)
Neden Bu Model?
Uzun süreli kayıt, kolay yönetim ve esnek entegrasyonla toplam sahip olma maliyetini düşürür.
